Solar Pump Controllers
Microcare products are designed and developed locally with extensive field testing completed before the manufacturing process begins. Ideal for South African conditions the Microcare Solar VSD Pump Controllers are designed to provide power to remote applications of motors and pumps. Driven by local innovation the unit is a Maximum Power Point Tracker (MPPT) facilitating a maximum power generation for efficient usage. With its variable speed selectable control and flow switch input the unit is able to offer a true Solar Pump Controller capable of producing high efficiency and maximum power output. The unique built in overdrive feature allows for a lower PV voltage operation.

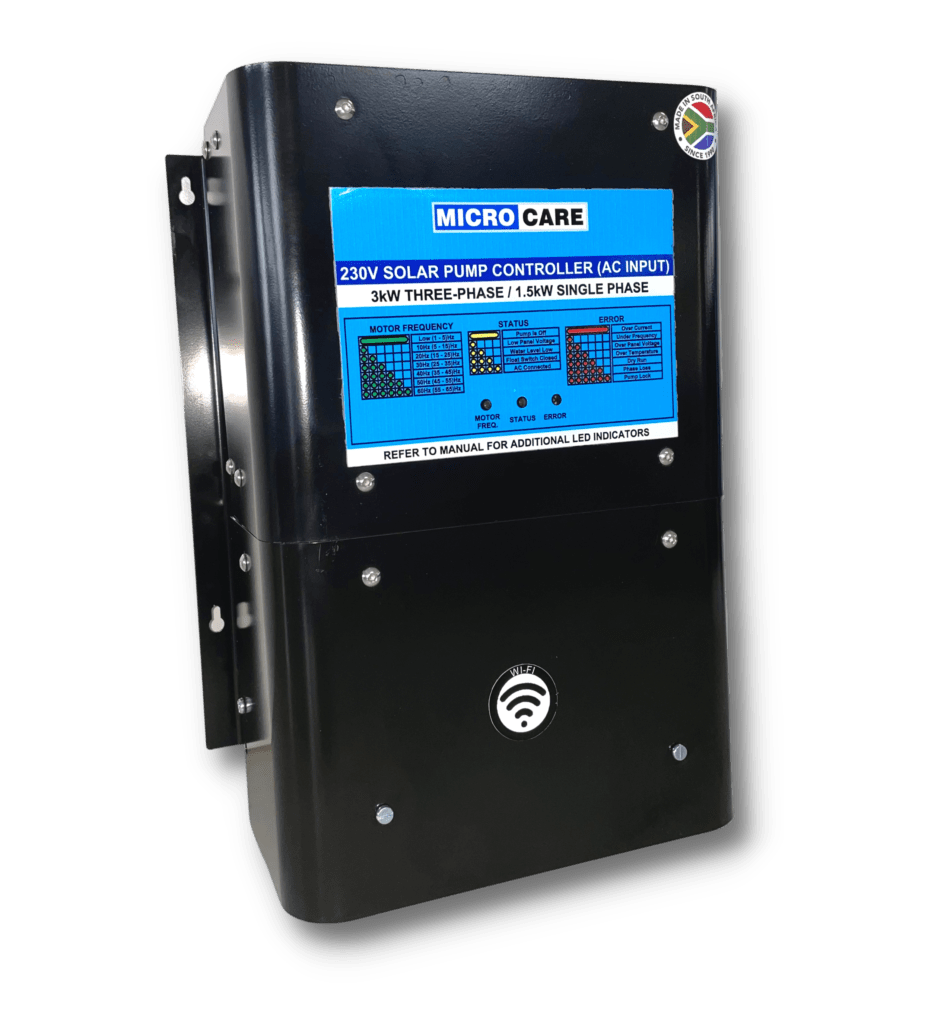

230V Solar VSD Pump Controller (AC input)
POR
Microcare products are designed and developed locally with extensive field testing completed before the manufacturing process begins. Ideal for South African conditions the Microcare Solar VSD Pump Controllers are designed to provide power to remote applications of motors and pumps. Driven by local innovation the unit is a Maximum Power Point Tracker (MPPT) facilitating a maximum power generation for efficient usage. With its variable speed selectable control and flow switch input the unit is able to offer a true Solar Pump Controller capable of producing high efficiency and maximum power output. The unique built in overdrive feature allows for a lower PV voltage operation.
Product Specifications
- AC Input to allow shared power usage & operation from the Grid or AC source
- PV Panel Input Voltage of 265-550 VDC
- Compatible with single & three-phase 220V motors that are VSD approved
- LED status feedback
- High – Low water input connectors
- Float switch input
- Trip and restart controls
- Built in Variable Speed Drive (VSD)
- Surge Protection
- Unique overdrive feature allows lower PV Voltage operation than is currently available on the market
- IP44 rated
- No external enclosure box required
- Cost effective installation
- Available with comms port for Wi-Fi connection
Product Documents
1.5kW Three-Phase VSD Solar Pump Controller
POR
Microcare products are designed and developed locally with extensive field testing before the manufacturing process begins. Ideal for South African conditions the Microcare Three Phase Solar Pump Inverter is designed to provide power to remote applications of motors and pumps. Driven by innovation the unit is a Maximum Power Point Tracker (MPPT) facilitating a maximum power generation for efficient usage. With its variable speed selectable control and flow switch input the unit is able to offer a true Solar Pump Inverter capable of producing high efficiency and maximum power output. The unique built in overdrive feature allows for a lower PV voltage operation.
Product Specifications
- Surge Protection
- Input Voltage of 450-1000 VDC
- Compatible with any three-phase 220V & 380V motors
- LED status feedback
- High – Low water probes
- Float switch input
- Trip and restart controls
- Built in Variable Speed Drive (VSD)
- Unique overdrive feature allows lower PV Voltage operation than what’s available on the market
- IP44 rated
- No external enclosure box required
- Cost effective installation
Product Documents

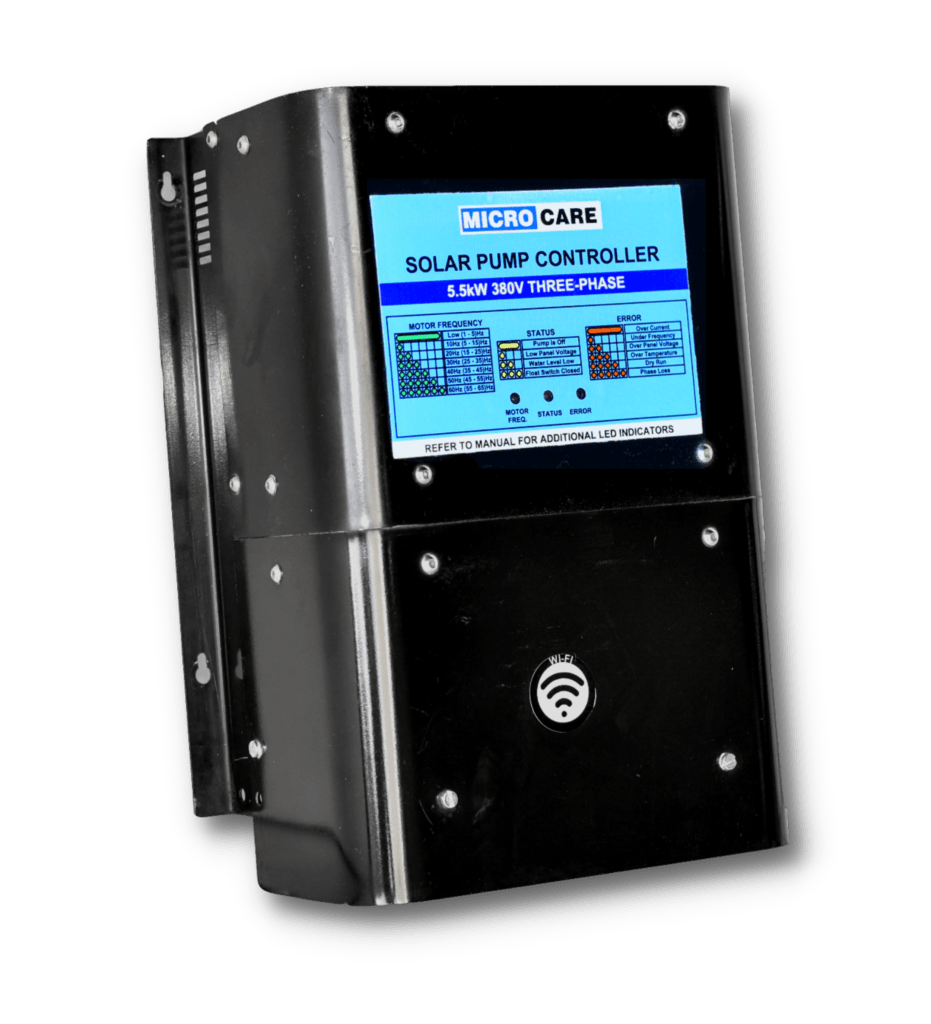

5.5kW 380V Three-Phase VSD Solar Pump Controller
POR
Microcare products are designed and developed locally with extensive field testing before the manufacturing process begins. Ideal for South African conditions the Microcare Three Phase Solar Pump Inverter is designed to provide power to remote applications of motors and pumps. Driven by innovation the unit is a Maximum Power Point Tracker (MPPT) facilitating a maximum power generation for efficient usage.
With its variable speed selectable control and flow switch input the unit is able to offer a true Solar Pump Inverter capable of producing high efficiency and maximum power output. The unique built in overdrive feature allows for a lower PV voltage operation.
Product Specifications
- Surge Protection
- Input Voltage of 450-1000 VDC
- Compatible with any three-phase 220V & 380V motors
- LED status feedback
- High – Low water probes
- Float switch input
- Trip and restart controls
- Built in Variable Speed Drive (VSD)
- Unique overdrive feature allows lower PV Voltage operation than what’s available on the market
- IP44 rated
- No external enclosure box required
- Cost effective installation
Product Documents
